产品名称:pCas9质粒(ZK1672)

货号 规格 价格 订购数量 是否现货
ZK1672 1ug×1支 870 - + 有货
质粒分类
主要功能次级功能用途抗性
大肠杆菌质粒
大肠编辑质粒
大肠Cas9质粒
基因敲除
Chl


■ 基本信息

复制子: p15A ori

质粒分类: 大肠系列质粒;大肠编辑质粒;大肠Cas9质粒

质粒大小: 9326bp

原核抗性: 氯霉素Chl(50μg/ml)

克隆菌株: Stbl3等大肠杆菌

培养条件: 37℃,LB,有氧

表达宿主: 大肠杆菌

诱导方式: 无需诱导

5'测序引物: StrepPyoCas9-5UTR-F(CGGTGCCACTTTTTCAAGTTG)

3'测序引物: pBRrevBam(GGTGATGTCGGCGATATAGG)


■ 质粒简介

pCas9质粒是CRISPR/Cas9系统类载体,复制子是p15A ori和ori,质粒大小是9326bp,可转化进相应的宿主细胞中,通大量养条件是LB,37℃。

pCas9可在大肠杆菌中表达Cas9蛋白,和pCRISPR搭配可用于基因敲除,低拷贝质粒,Bacterial expression of Cas9 nuclease, tracrRNA and crRNA guide.

pCas9 can often be difficult to target double-stranded breaks (DSBs) with the precision that is necessary for various genome editing applications. The ability to engineer Cas9 derivatives with purposefully altered PAM specificities would address this limitation. Here we show that the commonly used Streptococcus pyogenes Cas9 (SpCas9) can be modified to recognize alternative PAM sequences using structural information, bacterial selection-baseddirected evolution, and combinatorial design. CRISPR-Cas9 nucleases enable efficient genome editing in a wide variety of organisms and cell types . Target site recognition by Cas9 is programmed by a chimeric single guide RNA (sgRNA) that encodes a sequence complementary to a target protospacer5 , but also requires recognition of a short neighboring PAM . SpCas9, the most robust and widely used Cas9 to date, primarily recognizes NGG PAMs and is consequently restricted to sites that contain this motif . It can therefore be challenging to implement genome editing applications that require precision, such as: homology-directed repair (HDR), which is most efficient when DSBs are placed within 10-20 bps of a desired alteration; the introduction of variable-length insertion or deletion (indel) mutations into small size genetic elements such as microRNAs, splice sites, short open reading frames, or transcription factor binding sites by non-homologous end-joining (NHEJ); and allele-specific editing, where PAM recognition might be exploited to differentiate alleles.

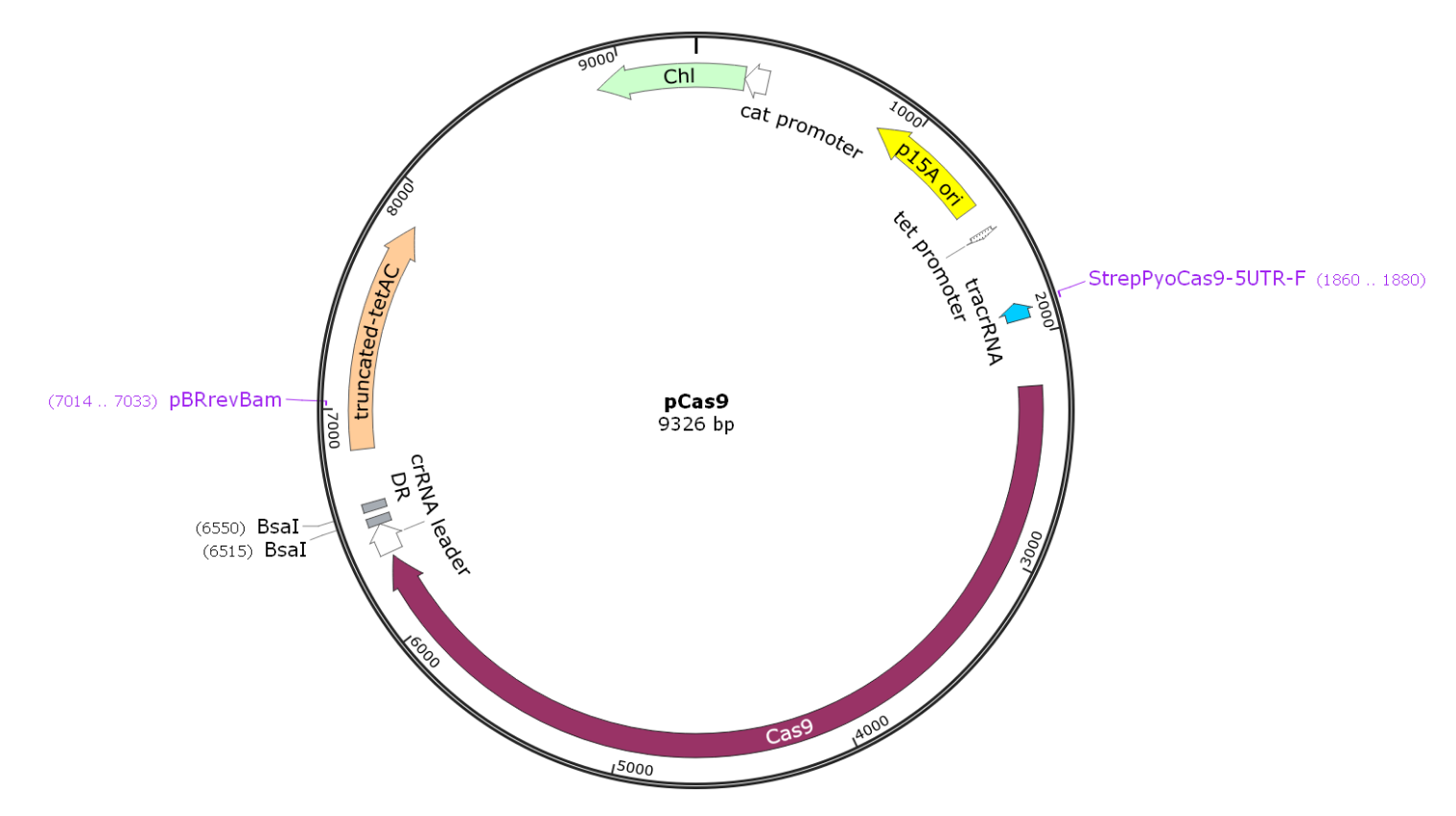

载体质粒图谱和多克隆位点信息


ZK1672 pCas9大肠质粒说明书.doc
