■ 基本信息
启动子: | CMV |
复制子: | pUC |
终止子: | SV40 poly(A) signal |
质粒分类: | 哺乳细胞，荧光蛋白报告载体 |
质粒大小: | 4722bp |
原核抗性: | Kan |
真核抗性: | G418 |
克隆菌株: | DH5a |
培养条件: | 37度 |
表达宿主: | 哺乳细胞 |
诱导方式: | 无须诱导，瞬时表达 |
5'测序引物:
| CMV-F：CGCAAATGGGCGGTAGGCGTG |
3'测序引物: | mCherry-R:TTGGTCACCTTCAGCTTGG |
■ 质粒属性
质粒宿主: | 哺乳细胞 |
质粒用途: | 蛋白表达 |
片段类型: | ORF
|
片段物种: | 空载体
|
原核抗性: | Kan |
真核抗性: | G418
|
荧光标记: | 红色
|
■ 质粒简介
pmCherry-N1 is a mammalian expression vector designed to express a protein of interestfused to the N-terminus of mCherry, a mutant fluorescent protein derived from thetetrameric Discosoma sp. red fluorescent protein, DsRed (1). The excitation and emission maxima of the native mCherry protein are 587 nm and 610 nm, respectively. Expression of fusion proteins that retain the fluorescent properties of the unmodified mCherry protein can be monitored by flow cytometry and their localization in vivo can be determined by fluorescence microscopy.
质粒只保证关键序列正确，不保证表达效果。

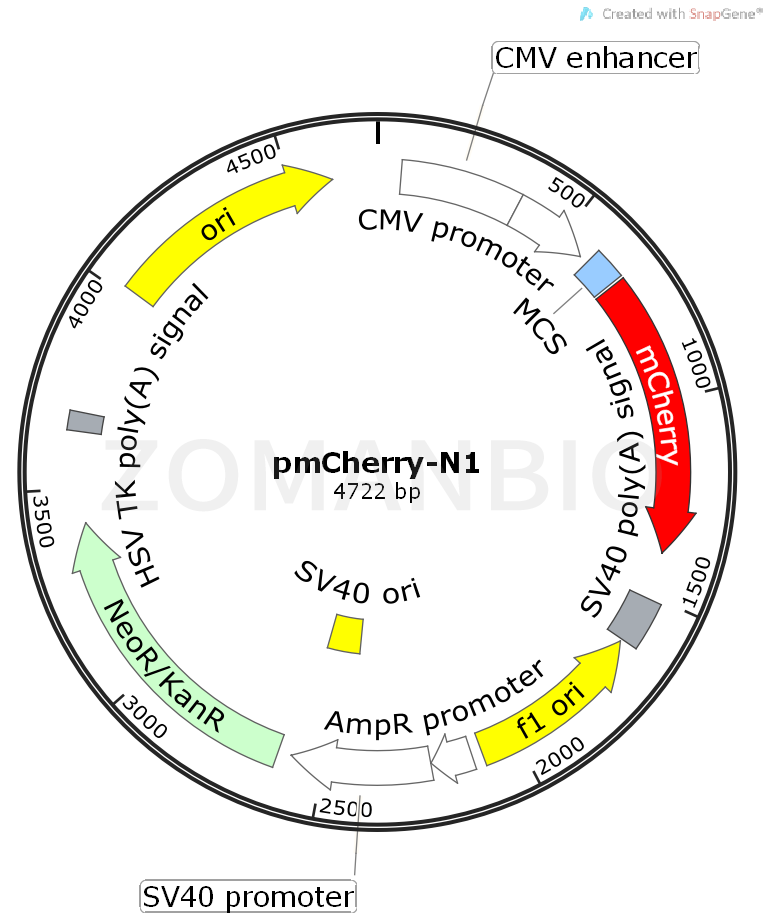

■ 质粒图谱
■ 质粒序列
质粒序列请下载：
ZK437pmCherry-N1哺乳荧光质粒.txt
