■ 基本信息
启动子: | CMV |
复制子: | pUC |
终止子: | SV40 poly(A) signal |
质粒分类: | 哺乳细胞，荧光蛋白报告载体 |
质粒大小: | 4691bp |
原核抗性: | Kan |
真核抗性: | G418 |
克隆菌株: | DH5a |
培养条件: | 37℃ |
表达宿主: | 哺乳细胞 |
诱导方式: | 无须诱导，瞬时表达 |
5'测序引物:
| CMV-F：CGCAAATGGGCGGTAGGCGTG
|
3'测序引物: | 根据序列设计引物 |
■ 质粒属性
质粒宿主: | 哺乳细胞 |
质粒用途: | 蛋白表达 |
片段类型: | ORF
|
片段物种: |
|
原核抗性: | Kan |
真核抗性: | G418
|
荧光标记: |
|
■ 质粒简介
pDsRed-Monomer-N1 is a mammalian expression vector that encodes DsRed-Monomer (DsRed.M1), a monomeric mutant derived from the tetrameric Discosoma sp. red fuorescent protein DsRed. DsRed-Monomer contains forty-fve amino acid substitutions (listed on page 2). When DsRed-Monomer is expressed in mammalian cell cultures, red fuorescent cells can be detected by either fuorescence microscopy or fow cytometry 12–16 hr after transfection (DsRed-Monomer excitation and emission maxima = 557 nm and 592 nm, respectively). The DsRed-Monomer coding sequence is human codon-optimized for high expression in mammalian cells.
质粒只保证关键序列正确，不保证表达效果。

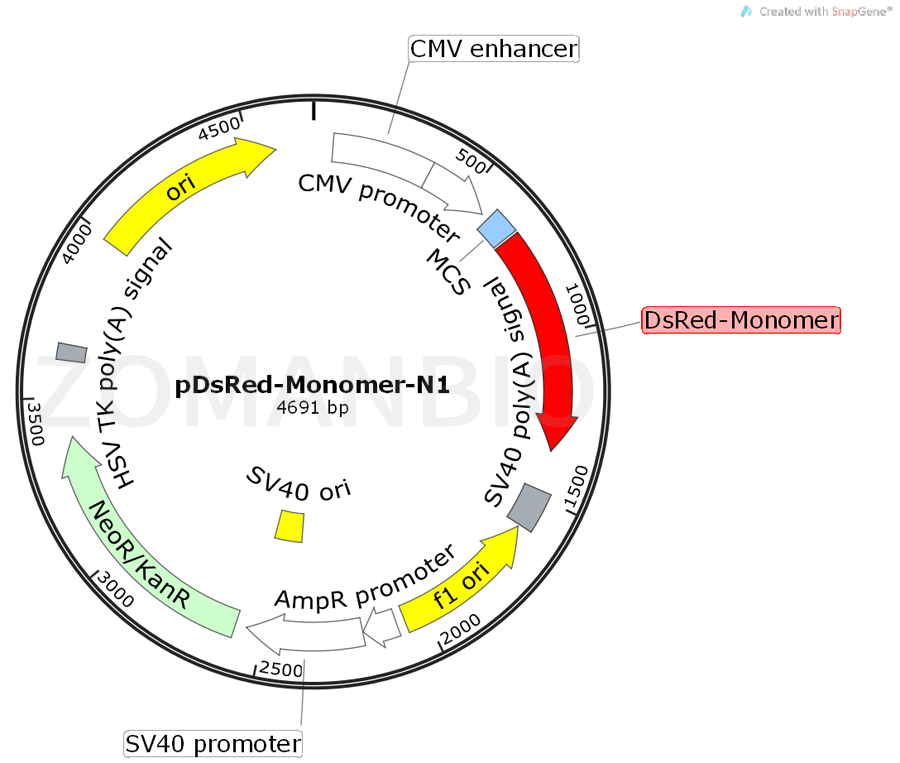

■ 质粒图谱
■ 质粒序列
质粒序列请下载：
ZK439pDsRed-Monomer-N1哺乳荧光质粒.txt
