■ 基本信息
启动子: | CMV |
复制子: | pUC |
终止子: | SV40 poly(A) signal |
质粒分类: | 哺乳细胞，荧光蛋白报告载体 |
质粒大小: | 4733bp |
原核抗性: | Kan |
真核抗性: | G418 |
克隆菌株: | DH5a |
培养条件: | 37度 |
表达宿主: | 哺乳细胞 |
诱导方式: | 无须诱导，瞬时表达 |
5'测序引物:
| pEGFP-C-5:CATGGTCCTGCTGGAGTTCGTG
|
3'测序引物: | 根据序列设计引物 |
■ 质粒属性
质粒宿主: | 哺乳细胞 |
质粒用途: | 蛋白表达 |
片段类型: | ORF
|
片段物种: |
|
原核抗性: | Kan |
真核抗性: | G418
|
荧光标记: |
|
■ 质粒简介
pEYFP-N1 encodes an enhanced yellow-green variant of the Aequorea victoria green fluorescent protein (GFP). The EYFP gene contains four amino acid substitutions previously published as GFP-10C (1). The fluorescence excitation maximum of EYFP is 513 nm, and the emission spectrum has a peak at 527 nm (in the yellow-green region). When excited at 513 nm, the Em of EYFP is 36,500 cm–1M–1 and the fluorescence quantum yield is 0.63 (1), resulting in a bright fluorescent signal. The fluorescence level observed from EYFP is roughly equivalent to that from EGFP.

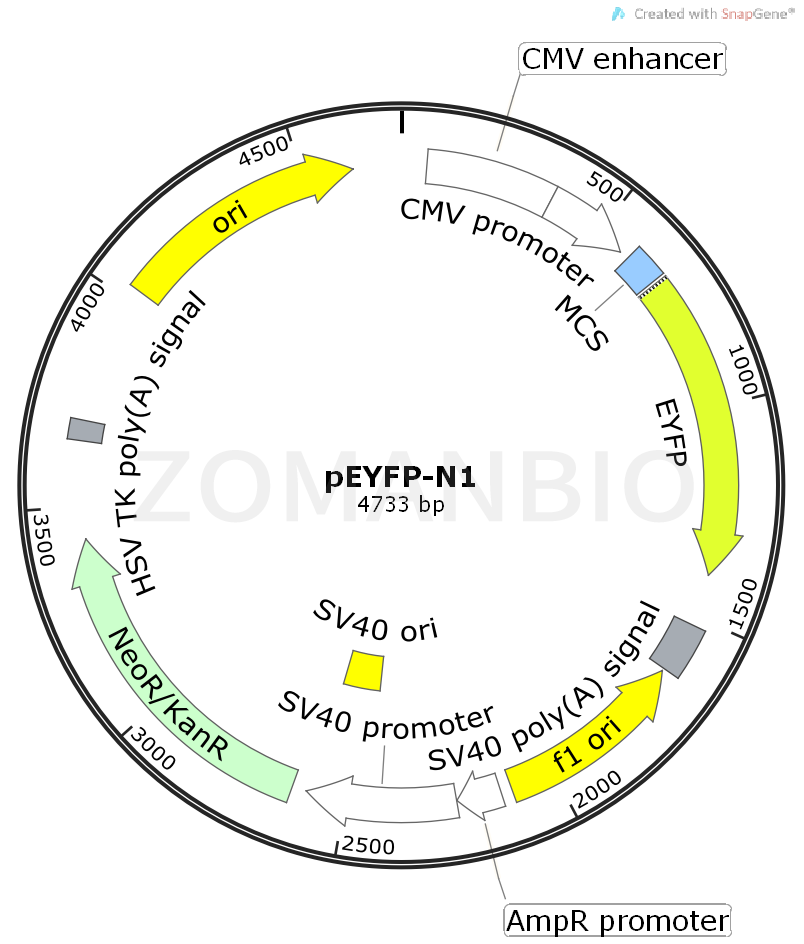

■ 质粒图谱
■ 质粒序列
质粒序列请下载：
ZK451pEYFP-N1哺乳荧光质粒.txt
