■ 基本信息
启动子: | CMV |
复制子: | pUC |
终止子: | SV40 poly(A) signal |
质粒分类: | 哺乳细胞，荧光蛋白报告载体 |
质粒大小: | 4793bp |
原核抗性: | Kan |
真核抗性: | G418 |
克隆菌株: | DH5a |
培养条件: | 37度 |
表达宿主: | 哺乳细胞 |
诱导方式: | 无须诱导，瞬时表达 |
5'测序引物:
| 根据序列设计引物
|
3'测序引物: | 根据序列设计引物 |
■ 质粒属性
质粒宿主: | 哺乳细胞 |
质粒用途: | 定位 |
片段类型: |
|
片段物种: |
|
原核抗性: | Kan |
真核抗性: | G418
|
荧光标记: |
|
■ 质粒简介
pEYFP-Mem encodes a fusion protein consisting of the N-terminal 20 amino acids of neuromodulin,also called GAP-43, and a yellow-green fluorescent variant of the enhanced green fluorescent protein (EGFP). The neuromodulin fragment contains a signal for posttranslational palmitoylation of cysteines 3 and 4 that targets EYFP to membranes. The EYFP gene contains four amino acid substitutions previously published as GFP-10C. The fluorescence excitation maximum of EYFP is 513 nm, and the emission maximum is 527 nm (in the yellow-green region).

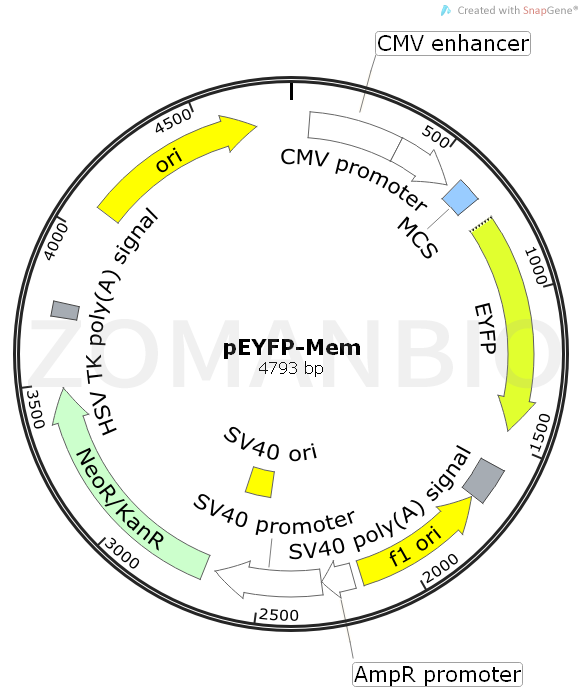

■ 质粒图谱
■ 质粒序列
质粒序列请下载：
ZK530pEYFP-Mem细胞膜定位质粒.txt
