■ 基本信息
启动子: | CMV |
复制子: | pUC |
终止子: | SV40 poly(A) signal，beta-globin polyA signal |
质粒分类: | 哺乳细胞，四环素调控系统载体 |
质粒大小: | 7400bp |
原核抗性: | Amp |
克隆菌株: | DH5a |
培养条件: | 37度 |
表达宿主: | 哺乳细胞 |
诱导方式: | 四环素诱导 |
5'测序引物: | CMV-F：CGCAAATGGGCGGTAGGCGTG |
3'测序引物: | 根据序列设计引物 |
■ 质粒属性
质粒宿主: | 哺乳细胞 |
质粒用途: | 蛋白表达 |
片段类型: |
|
片段物种: |
|
原核抗性: | Amp |
真核抗性: |
|
荧光标记: |
|
■ 质粒简介
pTet-On® expresses the reverse tet-responsive transcriptional activator (rtTA) from the strong immediate early promoter of cytomegalovirus (PCMV). tTA is a fusion of amino acids 1–207 of the tet repressor (TetR) and the negatively charged C-terminal activation domain (130 amino acids) of the VP16 protein of herpes simplex virus. pTet-On is similar to pTet-Off except for four amino acid changes that convert the TetR to a rTetR, and consequently, tTA to rtTA. (pTet-Off also contains several silent mutations.) pTet-On was originally described as pUHD17-1neo by Gossen et al. (1995). pTet-On can be distinguished from pTet-Off by digestion with Hind III.

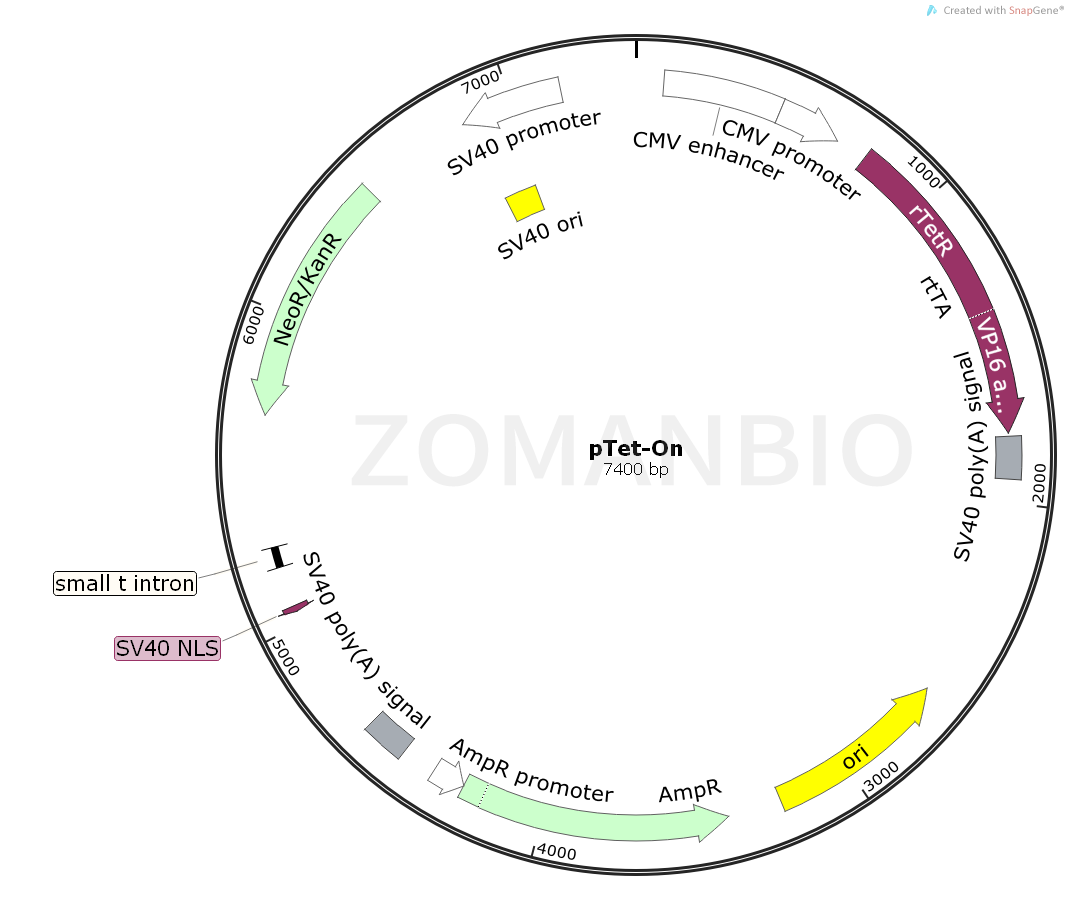

■ 质粒图谱
■ 质粒序列
质粒序列请下载：
ZK694pTet-On哺乳调控质粒.txt
