■ 基本信息
启动子: | CMV |
复制子: | pUC |
终止子: | SV40 poly(A) signal |
质粒大小: | 7384bp |
原核抗性: | Kan |
真核抗性: | G418 |
克隆菌株: | Stbl3 |
培养条件: | 37度 |
表达宿主: | 哺乳细胞 |
诱导方式: | 无须诱导，瞬时表达 |
5'测序引物: | CMV-F：CGCAAATGGGCGGTAGGCGTG |
3'测序引物: | Sv40-polyA-R：GAAATTTGTGATGCTATTGC |
■ 质粒属性
质粒宿主: | 哺乳细胞,腺病毒 |
质粒用途: | 蛋白表达 |
片段类型: |
|
片段物种: |
|
原核抗性: | Kan |
真核抗性: | G418
|
荧光标记: |
|
■ 质粒简介
The vector pShuttle-CMV contains a multiple cloning site sandwiched between the CMV promoter and the SV40 polyadenylation signal and is suitable for insertion of a large cDNA (up to 6.6 kb). pShuttle contains only a multiple cloning site. This allows for the insertion of an entire expression cassette, including specialized promoters and termination signals (up to 7.5 kb). The regions indicated as arms are the stretches of sequence homology with pAdEasy-1 where the homologous recombination occurs. The R-ITR and L-ITR regions are short inverted terminal repeats (Left and Right) which have a role in replication of the viral DNA.

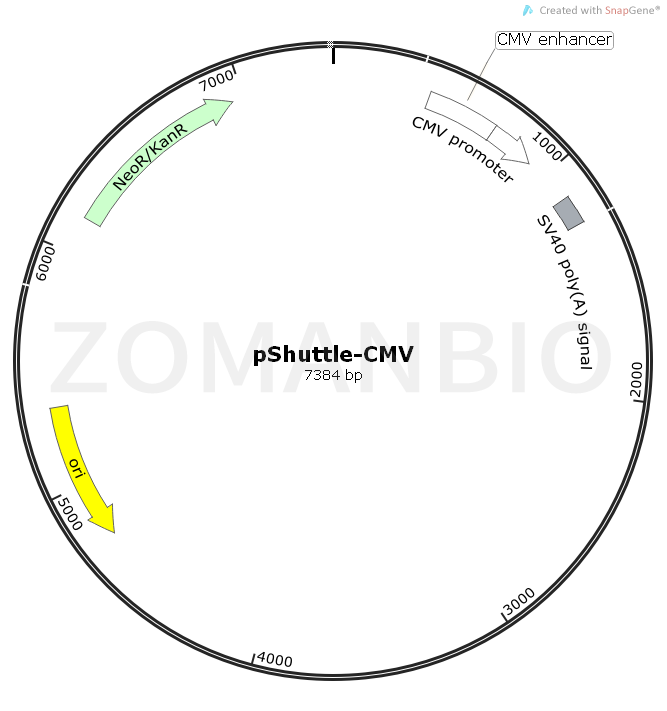

■ 质粒图谱
■ 质粒序列
质粒序列请下载：
ZK724pShuttle-CMV腺病毒质粒.txt
