■ 基本信息
启动子: | TRE3G |
复制子: | pUC |
终止子: | SV40 poly(A) signal |
质粒分类: | 病毒系列，慢病毒克隆载体 |
质粒大小: | 9100bp |
原核抗性: | Amp |
真核抗性: | Puro |
克隆菌株: | Stbl3 |
培养条件: | 37度 |
表达宿主: | 哺乳细胞 |
诱导方式: | 四环素诱导 |
5'测序引物:
| M13R:CAGGAAACAGCTATGACC
|
3'测序引物: | 根据序列设计引物 |
■ 质粒属性
质粒宿主: | 哺乳细胞,慢病毒 |
质粒用途: | 蛋白表达 |
片段类型: | ORF
|
片段物种: | 空载体
|
原核抗性: | Amp |
真核抗性: | Puro
|
荧光标记: | 绿色
|
■ 质粒简介
The inducible promoter PTRE3G provides for very low basal expression and high maximal expression after induction. It consists of 7 repeats of a 19 bp tet operator sequence located upstream of a minimal CMV promoter. PTRE3GV is a version of PTRE3G that was modified at Clontech for higher performance in lentiviruses and retroviruses. In the presence of Dox, Tet-On 3G binds specifically to PTRE3GV and activates transcription of the downstream GOI. PTRE3GV lacks binding sites for endogenous mammalian transcription factors, so it is virtually silent in the absence of induction. pLVX-TRE3G-ZsGreen1 is an HIV-1-based, inducible lentiviral expression vector that allows the simultaneous expression of ZsGreen1 and your protein of interest in virtually any mammalian cell type, including primary cells.

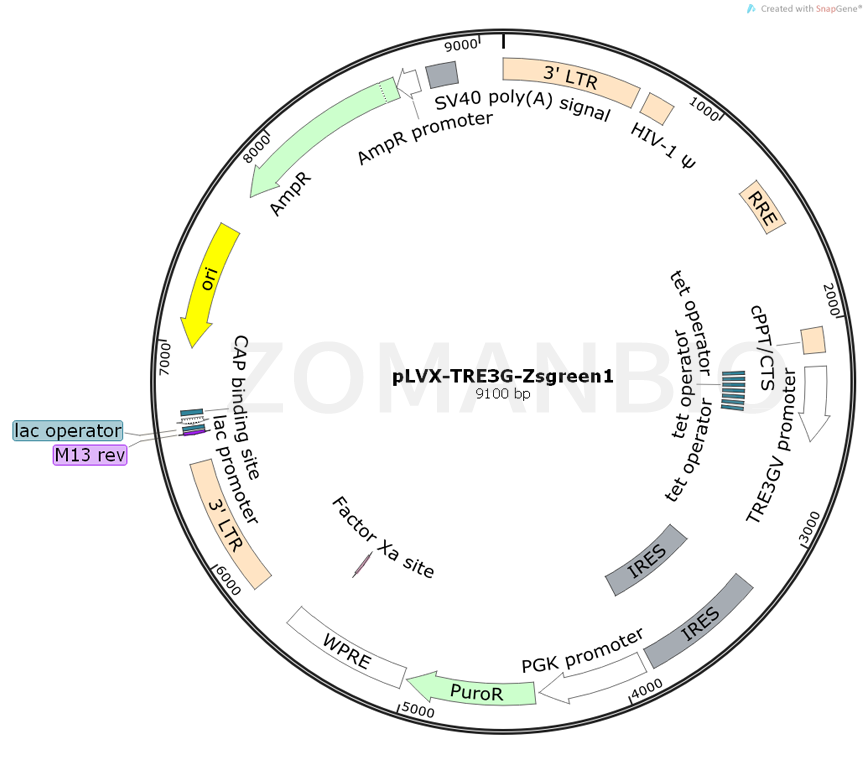

■ 质粒图谱
■ 质粒序列
质粒序列请下载：
ZK774pLVX-TRE3G-Zsgreen1慢病毒表达质粒.txt
