■ 基本信息
启动子: | URA3 |
复制子: | 2μ |
质粒分类: | 酵母系列，酿酒酵母表达载体 |
质粒大小: | 5181bp |
原核抗性: | Amp |
真核抗性: | URA3 |
克隆菌株: | DH5a |
培养条件: | 37度 |
表达宿主: | 酵母细胞 |
5'测序引物: | M13F:TGTAAAACGACGGCCAGT |
3'测序引物: | 根据序列设计引物 |
■ 质粒属性
质粒宿主: | 酵母菌 |
质粒用途: | 蛋白表达 |
片段类型: |
|
片段物种: |
|
原核抗性: | Amp |
真核抗性: | URA3
|
荧光标记: |
|
■ 质粒简介
Restriction digests of the clone give the following sizes (kb): BamHI--5.3; XbaI--5.3; PstI--5.3; HindIII--5.3.This is a Escherichia coli/yeast episomal shuttle vector with multiple restriction sites for cloning.Constructed by filling in and blunt-end ligating pUC18 linearized at NdeI, a 1.4 kb RsaI fragment of the 2 micron circle, and a 1.1 kb HindIII/SmaI fragment containing URA3. A XbaI site in 2u and a PstI site in URA3 were removed.The yeast genomicsequence is in nt 286-1383 (where the A of the ATG of lacZ' is number 1), the 2 micron sequence goes from nt 1384-2768, and pUC18 includes nt 2769-285.

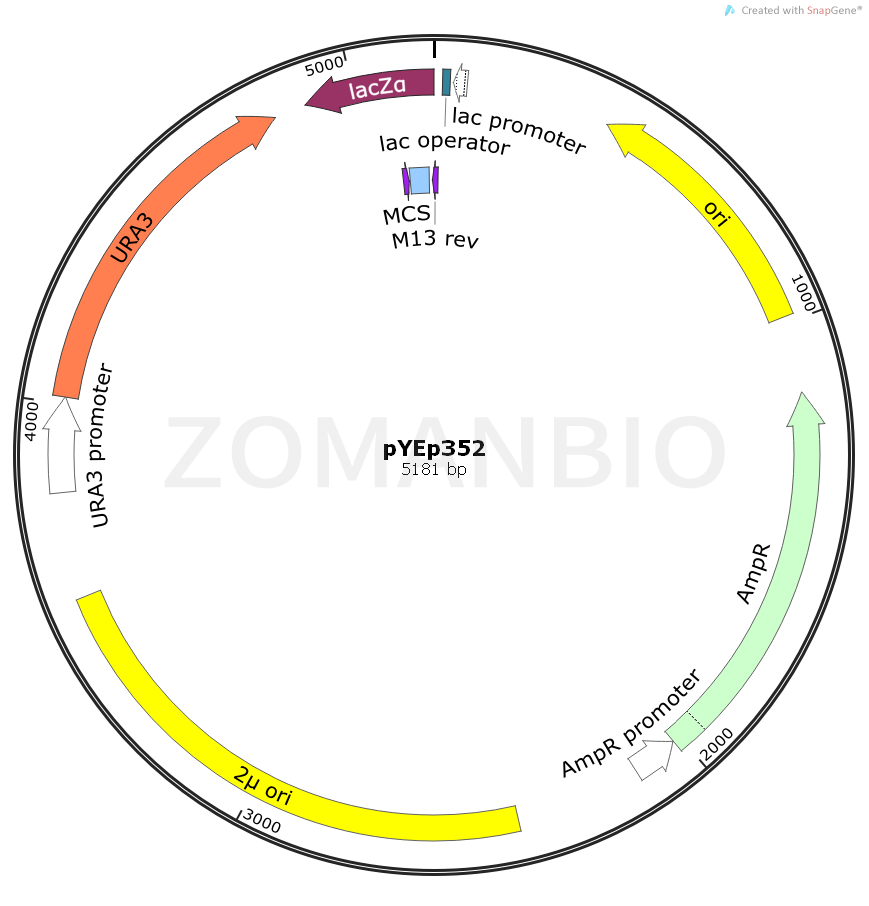

■ 质粒图谱
■ 质粒序列
质粒序列请下载：
ZK954pYEp352酿酒酵母质粒.txt
