■ 基本信息
启动子: | ADH1 |
复制子: | 2μ |
质粒分类: | 酵母系列，酵母双杂交载体 |
质粒大小: | 5524bp |
原核抗性: | Amp |
真核抗性: | TRP1 |
克隆菌株: | DH5a |
培养条件: | 37度 |
表达宿主: | 酵母细胞 |
5'测序引物: | 根据序列设计引物 |
3'测序引物: | 根据序列设计引物 |
■ 质粒属性
质粒宿主: | 酵母菌 |
质粒用途: | 杂交 |
片段类型: |
|
片段物种: |
|
原核抗性: | Amp |
真核抗性: | TRP1
|
荧光标记: |
|
■ 质粒简介
pGBT9 generates a hybrid protein that contains the sequences for the GAL4 DNA-binding domain (DNA-BD; a.a. 1–147). For the construction of a hybrid protein, the gene encoding the protein of interest is ligated into the MCS in the correct orientation and in the correct reading frame such that a fusion protein is generated. The fusion protein is expressed in yeast host cells from the constitutive ADH1 promoter; transcription is terminated at the ADH1 transcription termination signal. The hybrid protein is targeted to the yeast nucleus by nuclear localization sequences that are an intrinsic part of the GAL4 DNA-BD . pGBT9 is a shuttle vector that replicates autonomously in both E. coli and S. cerevisiae. It carries the bla gene (for ampicillin resistance in E. coli) and the TRP1 nutritional marker that allow yeast auxotrophs carrying pGBT9 to grow on limiting synthetic medium lacking Trp.

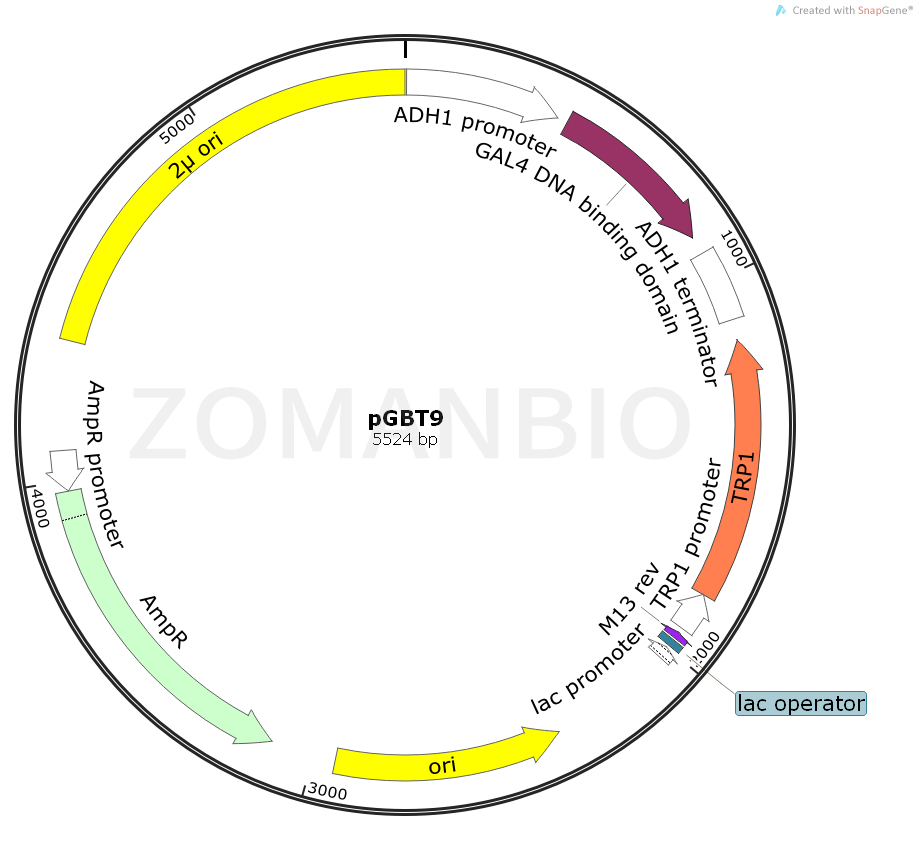

■ 质粒图谱
■ 质粒序列
质粒序列请下载：
ZK983pGBT9酵母双杂交质粒.txt
