■ 基本信息
别名: | pFastBacI |
启动子: | PH |
复制子: | pUC |
终止子: | SV40 poly(A) signal |
质粒分类: | 广宿主系列,昆虫细胞载体 |
质粒大小: | 4776bp |
原核抗性: | Amp |
筛选标记: | 庆大霉素Gen |
克隆菌株: | DH5α |
培养条件: | 37℃ |
表达宿主: | 昆虫细胞 |
诱导方式: | 无须诱导,瞬时表达 |
5'测序引物: | pFastbac-F:TATTCCGGATTATTCATACC |
3'测序引物: | pFastBac-R:ACAAATGTGGTATGGCTGA |
■ 质粒属性
质粒宿主: | 昆虫细胞 |
质粒用途: | 蛋白表达 |
片段类型: | ORF
|
片段物种: | 空载体
|
原核抗性: | Amp,Gen |
真核抗性: |
|
荧光标记: |
|
■ 质粒简介
pFastBac1载体是非融合性蛋白表达载体,在载体内部不带有其他融合性的蛋白标签。为了保证目的基因的正确表达,插入片段必须包含ATG起始密码子,保证蛋白起始翻译。插入片段最好包含终止密码子,保证蛋白质不会翻译出多余的氨基酸。在pFastBacI载体多克隆位点中,对于所有的三种读码框分布,都包含有终止密码子。
The Bac-to-Bac® Vector Kit contains a pFastBac™ 1 vector, as well an expression control vector, intended for use as part of the Bac-to-Bac® Baculovirus Expression System , which enables the efficent production of recombinant baculovirus for expression testing in insect cells. The Bac-to-Bac® System relies on generation of recombinant baculovirus by site-specific transposition in E. colirather than homologous recombination in insect cells (Figure 1). This system features:
Time-saving expression bacmid. With Bac-to-Bac®, the expression cassette of the pFastBac™ vector recombines with the parent bacmid in DH10Bac™ E. coli Competent Cells (not included with this vector kit) to form an expression bacmid. The bacmid is then transfected into insect cells for production of recombinant baculovirus particles.
Easy colony screening. The parent bacmid in DH10Bac™ E. colicontains a segment of the lacZα gene. The lacZα gene is disrupted upon transposition of the expression cassette into the bacmid allowing for blue/white selection of recombinants. This makes identification of recombinant colonies easy.

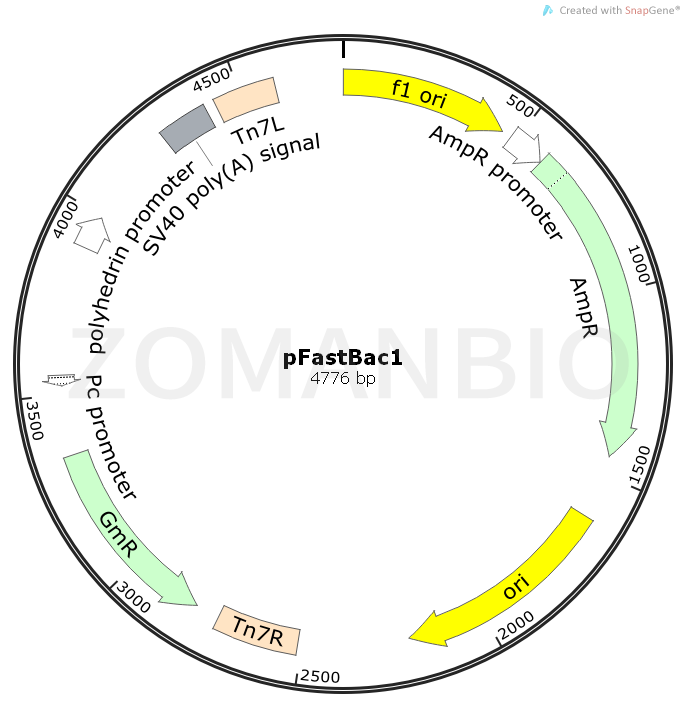

■ 质粒图谱
■ 质粒序列
质粒序列请下载:ZK1037pFastBac1昆虫胞内质粒.txt
质粒只保证关键序列正确,不保证表达效果。
