■ 基本信息
启动子: | PH |
复制子: | pBR322 |
终止子: | polyhedrin 3 |
质粒分类: | 昆虫细胞杆状病毒组成型表达质粒 |
质粒大小: | 9632bp |
原核抗性: | Amp |
克隆菌株: | DH5a |
培养条件: | 37度 |
表达宿主: | 昆虫细胞 |
诱导方式: | 组成性表达,无需诱导 |
5'测序引物: | Polyhedrin-F:AAATGATAACCATCTCGC |
3'测序引物: | Polyhedrin-R:GTCCAAGTTTCCCTG |
■ 质粒属性
质粒宿主: | 昆虫细胞 |
质粒用途: | 蛋白表达 |
片段类型: | ORF
|
片段物种: |
|
原核抗性: | Amp |
真核抗性: |
|
荧光标记: |
|
■ 质粒简介
pVL1392 and pVL1393 are 9.8 kb vectors designed for use as baculovirus transfer vectors. These transfer vectors contain recombination sequences which are homologous to sequences in the baculovirus genome.Upon cotransfection, these sequences undergo homologous recombination resulting in a recombinant viral genome packaged in infectious viral particles.
These vectors are nonfusion vectors, which provide the AcMNPV polyhedrin enhancer-promoter sequences to drive high expression, and a multiple cloning site, conveniently constructed in opposite orientations, for simple subcloning. Translation initiation sequences must be provided by the inserted cDNA.
• Multiple cloning site polylinker, positioned in opposite orientations
• Recombination sequences for insertion into the baculovirus genome
• Polyhedrin enhancer-promoter sequences for high expression of recombinant protein Features for growth and maintenance in E. coli:
• Ampicillin gene for selection
• pMB1 origin of replication from pUC19 for high copy number growth

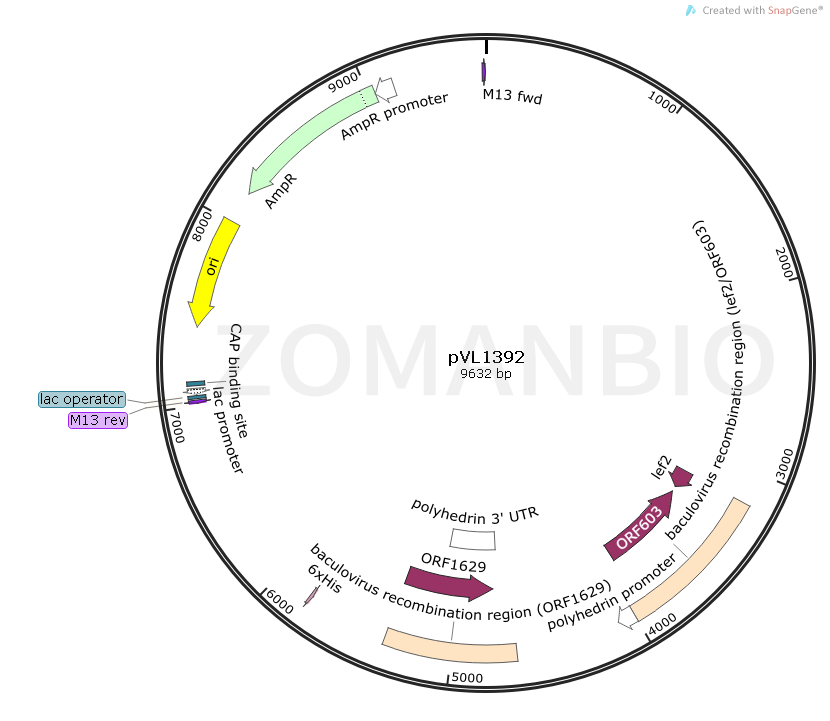

■ 质粒图谱
■ 质粒序列
质粒序列请下载:ZK1043pVL1392昆虫胞内质粒.txt
质粒只保证关键序列正确,不保证表达效果。
